Active Solids in the 3D Window can be useful for dimensional verification of created objects.

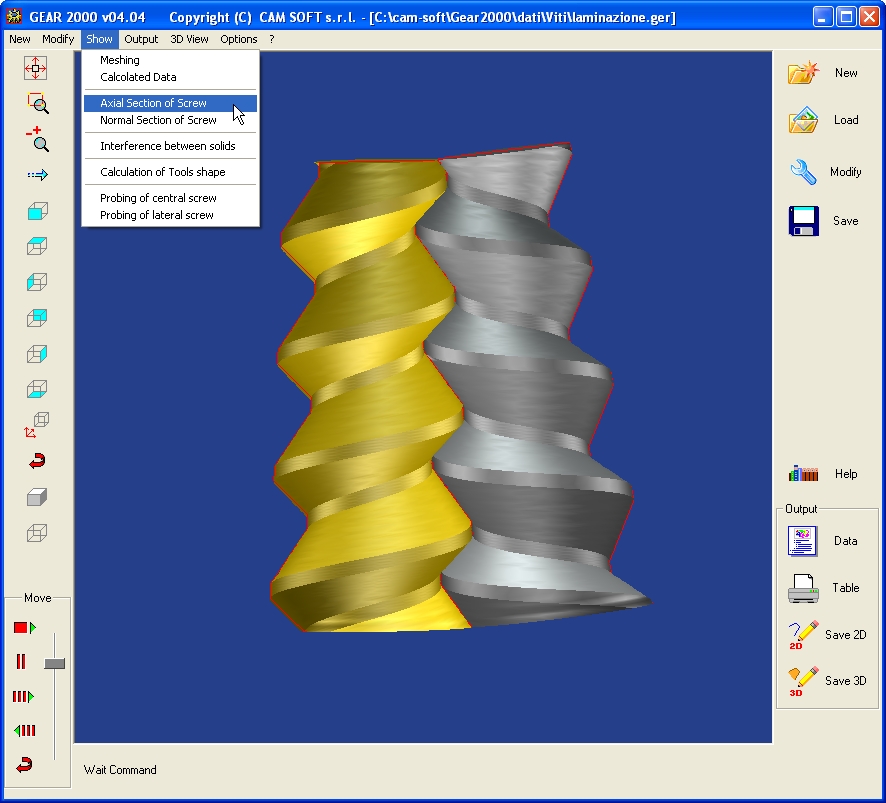

Calculates 2D geometry from active objects (red in the image below) that can be saved in the
various available CAD formats. (Data and 2D/3D files).

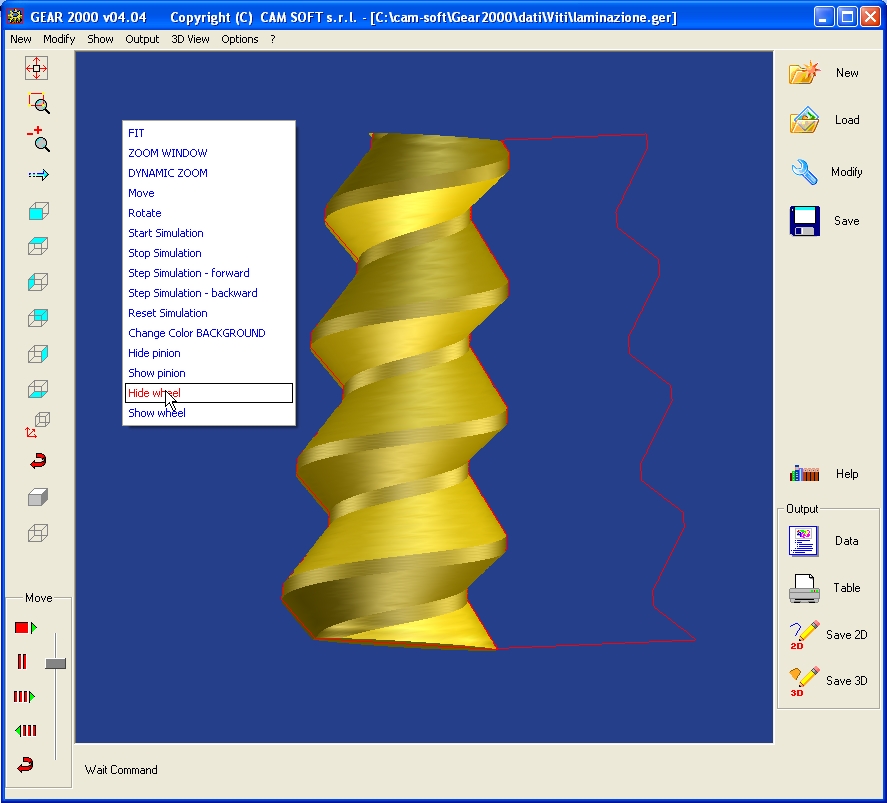

With solids display options (available by right-clicking on the 3D window background), you can
hide one or both solids to better highlight the 2D cutting geometry.

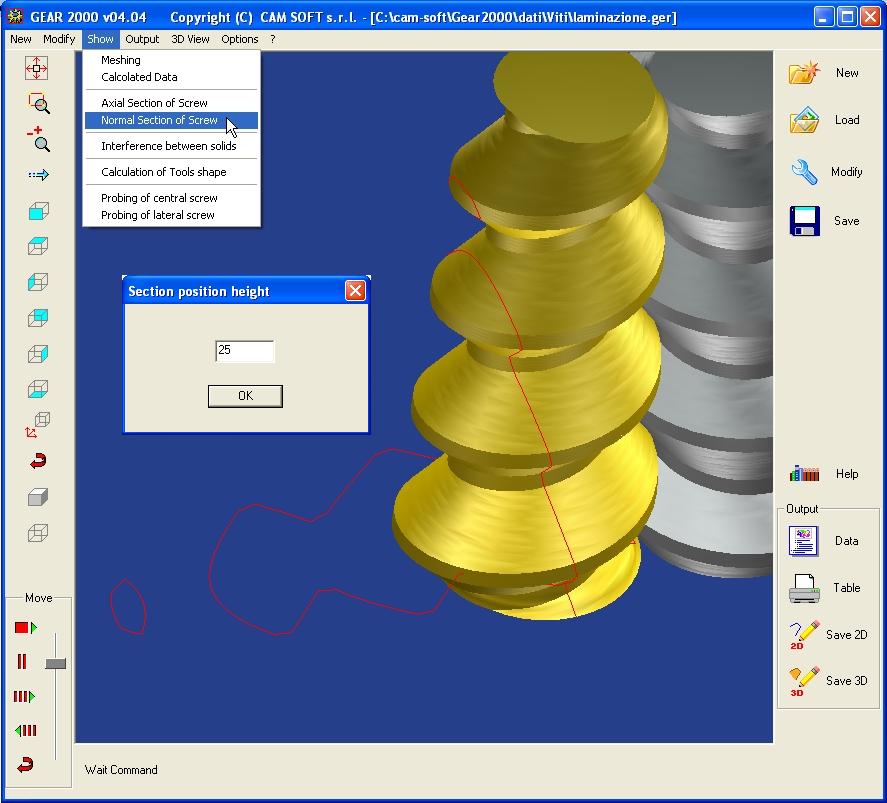

Calculates the 2D geometry of the thread (red in the image below) at the required height and
inclined of the helix angle. The obtained section can be saved in the various available CAD
formats. (Data and 2D/3D files)
