Once the data input has been completed, it is possible to create the profiles of the objects to be realized;
obviously the Wheel button will only appear if the Conjugate Wheel option is 'Known'.

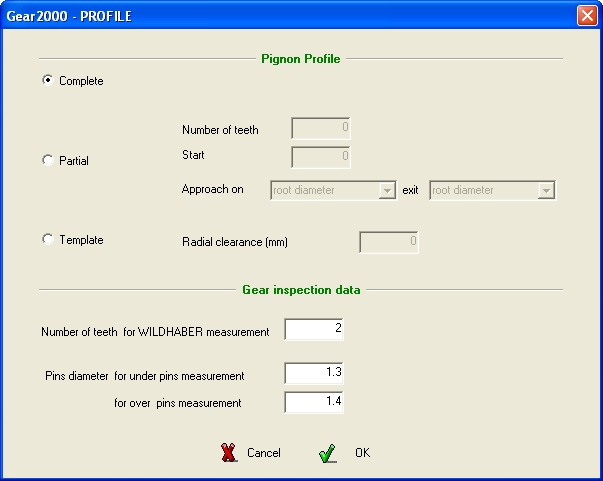

CLICKing the command will appear a DIALOG BOX where you can choose: Complete wheel, Partial wheel with
specific number of teeth or Template.
Pins diameter and Number of teeth informations are required for calculation of gear inspection dimensions.
- Profile and gear inspection data -
For the Bevel Gears the DIALOG-BOXES are the following.

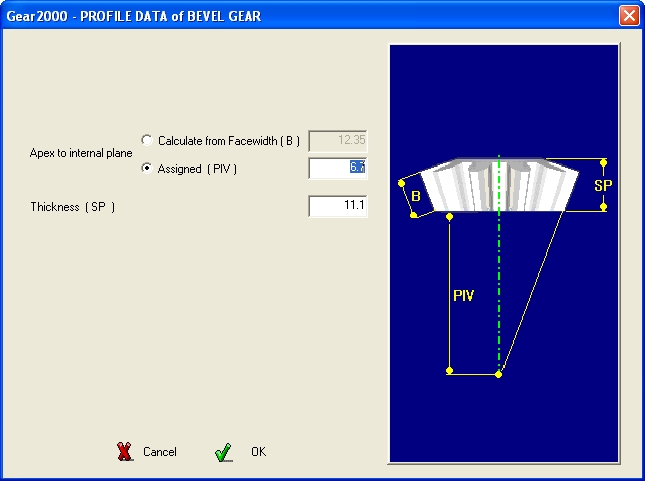

- Bevel Gears : Pinion data -

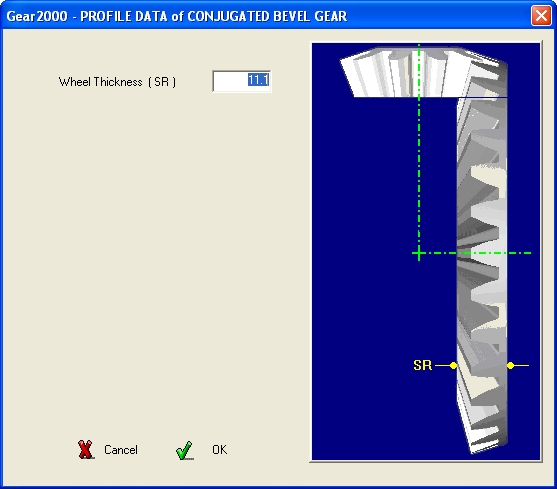

- Bevel Gears : Wheel data -

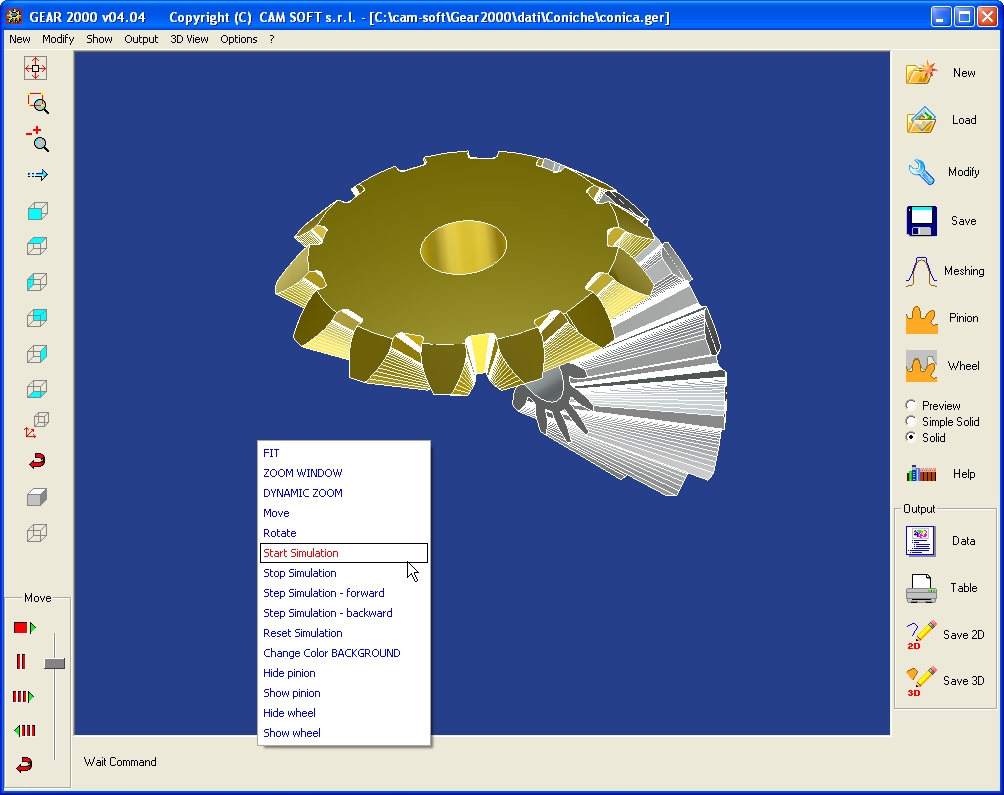

Once the solids are generated, the display commands appear in the left part of the main window, also available in
the drop-down menu that appears when you CLICK with the right mouse button on the background.
At the same time, many commands are activated in the main window to store and show data.
