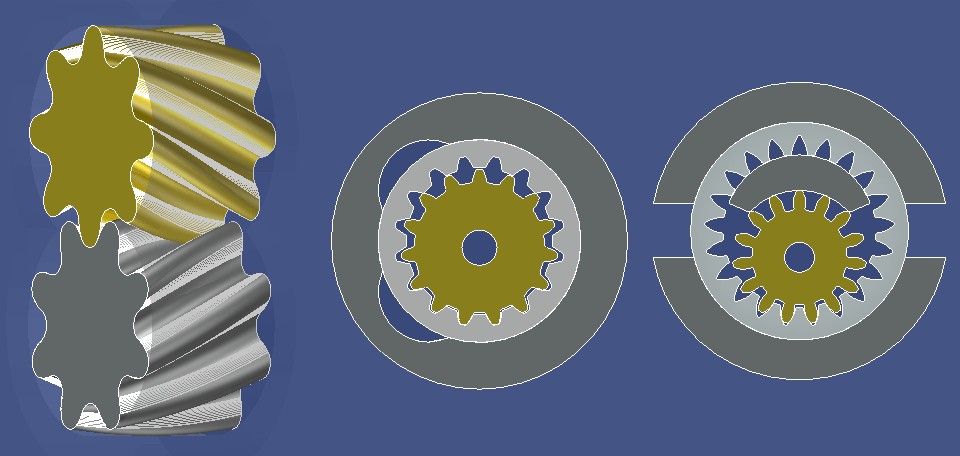

Special Pump: Type 1
The project is aimed at obtaining a pump with low levels of vibration and noise, working without
encapsulation areas that produce pressure and vibration oscillations.
The particular shape of the profile reduces these critical conditions.
The use of a special helical profile with angle ß (default 22 °) has been used in order to obtain an
adequate transmission ratio to ensure the drag of the driven screw.
The value of ß affects the values of the addendum and dedendum coefficients.
To compensate for the axial thrusts from the helix, adequate compensation channels are
provided, which also guarantee the lubrication of both screw heads.
You can apply to the entire profile a coupling backlash that can be customized by the operator.

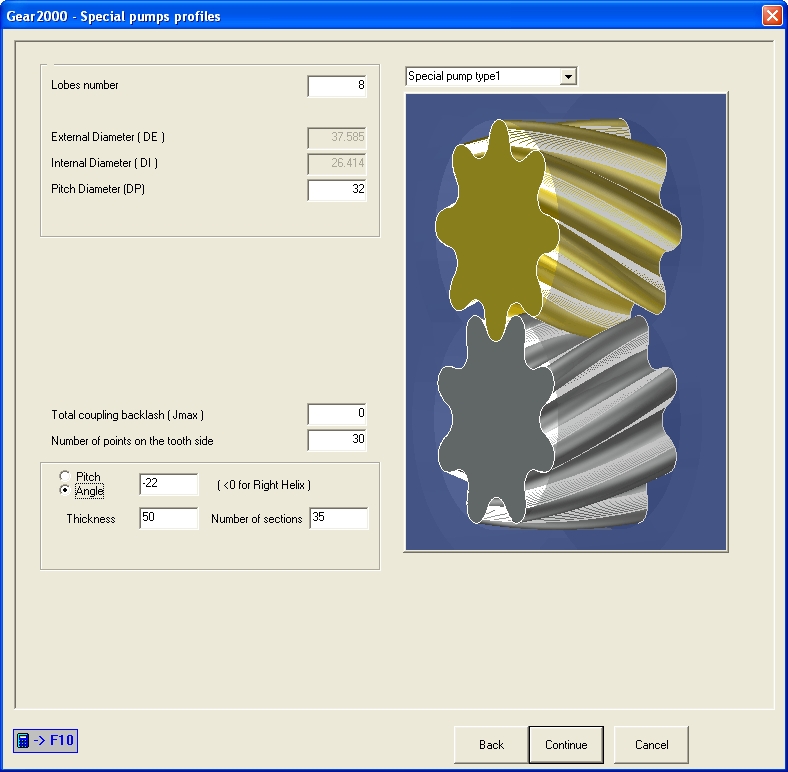

- Input DIALOG of for Special Pump Type 1 -

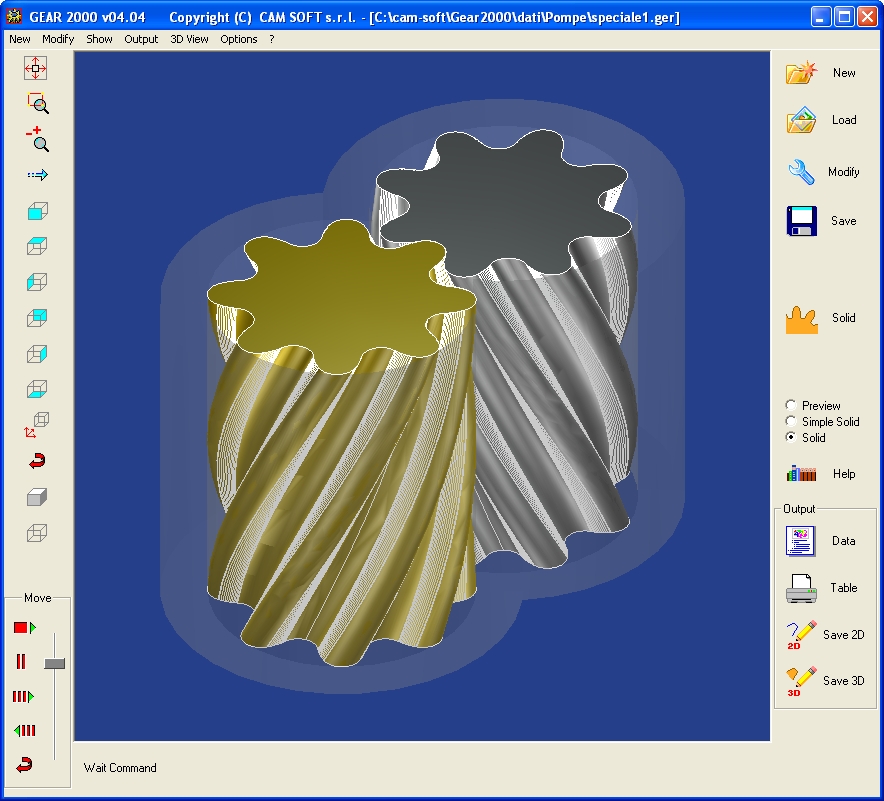

-3D solid models -

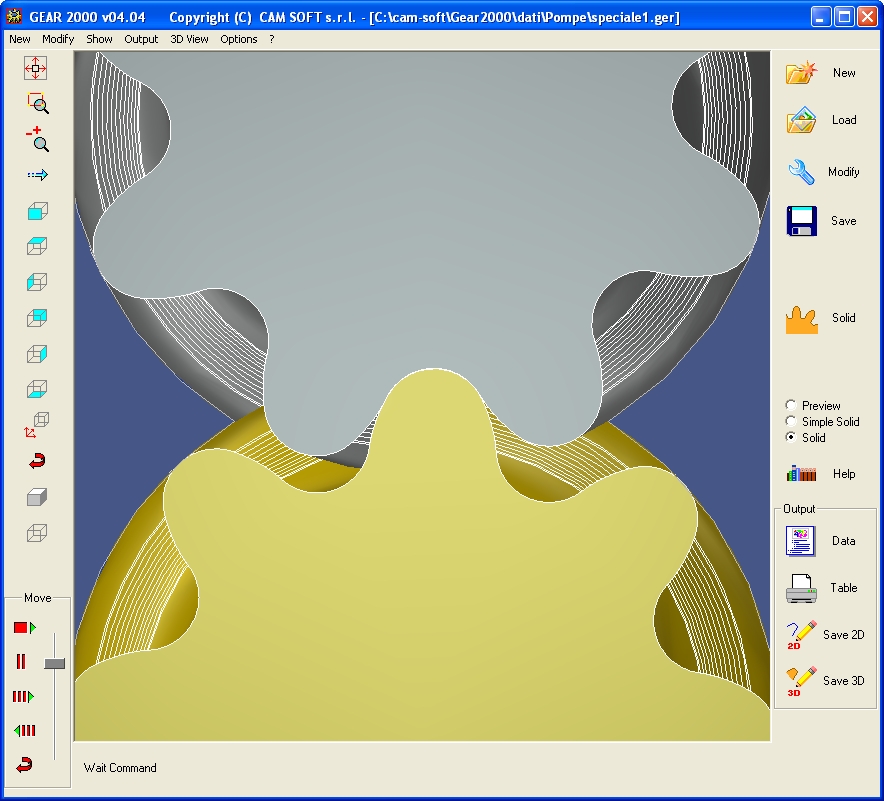

- Top view of meshing -
Special Pump: Type 2 and Type 3
They are Internal Straight Circular Pumps
There are two types:
1. Type 2 with Z1 (odd) e Z2 = (Z1 + 1) (even).
2. Type 3 with Z1 (odd) e Z2 = INT(Z1 * Coeff.) (odd integer greater)
In both cases the driver pinion is mounted fixed, positioned with respect to the crown with
eccentricity that will be calculated.
Type 3 has a flux separation tab for the liquid to be pumped, the sealing is carried out between
the outer sides of the separator tab and the tip diameter of the teeth; The tab can be divided into
two parts, one fixed in the case, the other oscillating.
Swing of tag can be driven by a spring or hydraulically in order to compensate for any mating
games and improve the tightness.

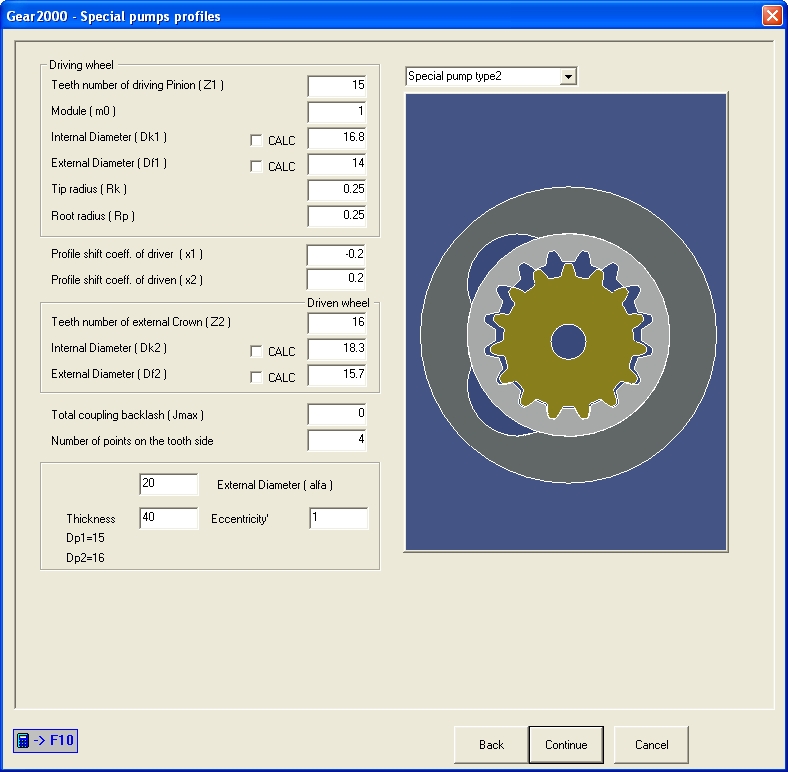

- Input DIALOG for Special Pump Type 2 -

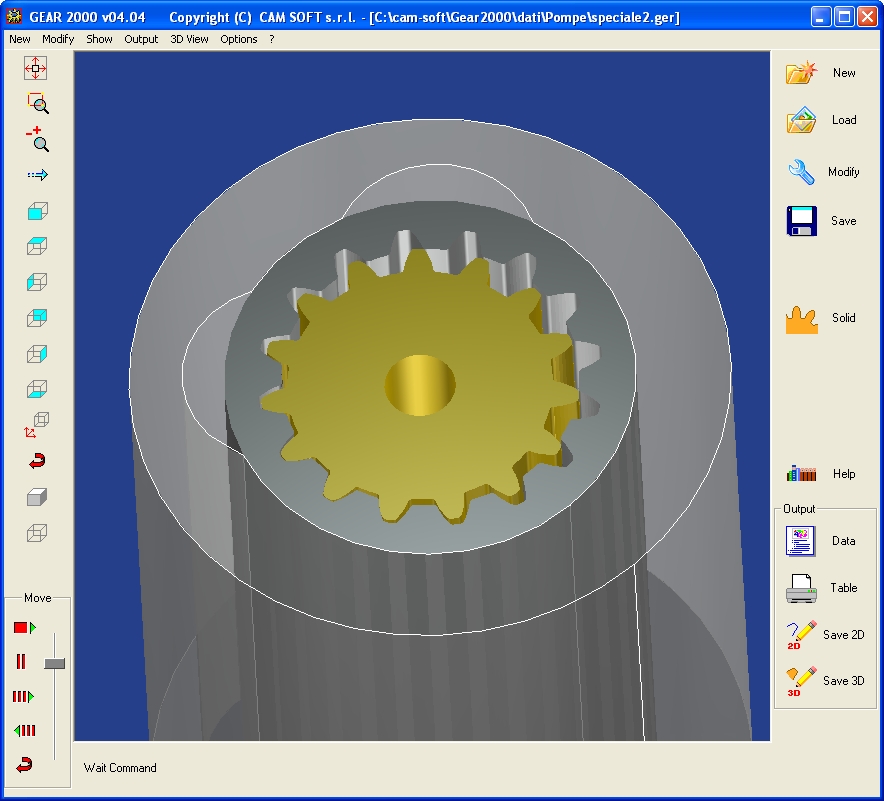

- 3D solid models -
- Input DIALOG for Special Pump Type 3 -

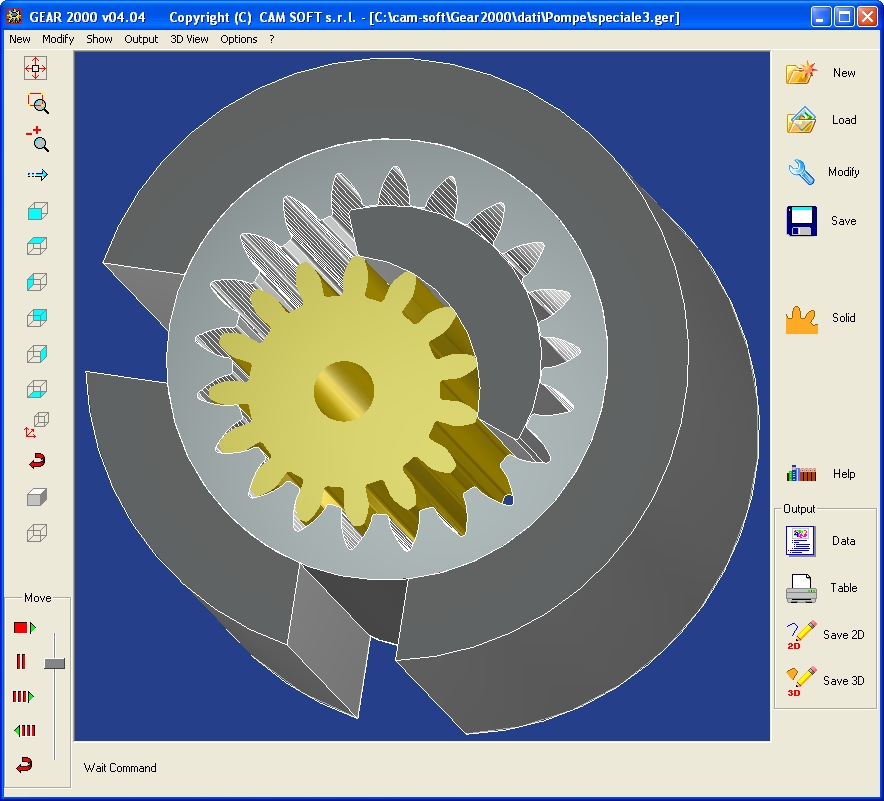

- 3D solid models -
