GEAR2000 - NOT ONLY GEARS !!!

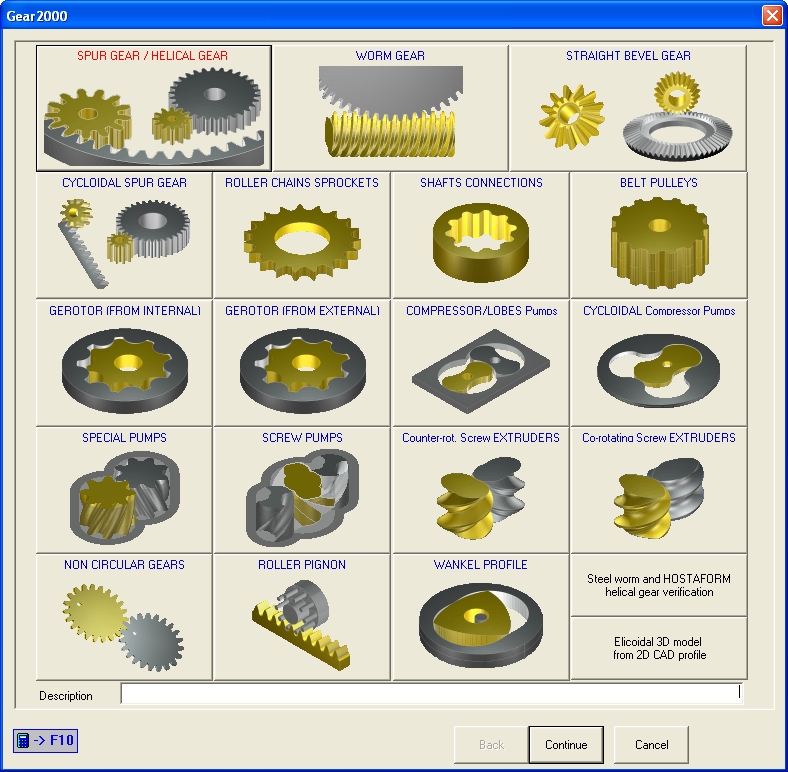

· Cylindrical gears, parallel axes, external/internal, straight and helical toothing.

· Bevel gears pair, external straight toothing, concurrent axes.

· Bevel gears ANSI/AGMA 2005-D03 specification.

· Cylindrical gears, parallel axes, external/internal, cycloidal toothing.

· Cylindrical gears Cetheor specification.

· Cylindrical spline mating DIN 5480 , DIN 5482 , UNI ISO 4156 and NF E 22-141.

· Shafts connections DIN 5481, DIN 5471/5472 , UNI 8953 , SAE J500 / TC-881 , SAE A/B/C series , DIN 5462/5463 and CUNA NC 008-01.

· Mathematical dynamicals check of steel worm screw / hostaform gear wheel coupling.

· Lobe Rotors Pump.

· Root Compressor.

· Screw Pumps.

· Lubrificating Gerotor Pumps.

· Wankel engine.

· RPS Racks and RPG gears

· Synchronous Pulley : UNI 8103 - DIN 7721-2 - AT - HTD.

· Chain wheel ISO 606.

· Non circular gear (Elliptical and Multispeed).

· Single Screw - Co-Rotating / Counter-Rotating Twin-Screw Extruders.

· Calculation of grinding wheel profile and End-Mill tool shape for piece machining.

- starting DIALOG -

Main functionality :

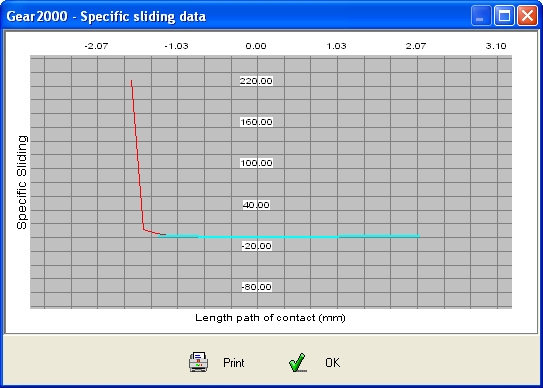

Sliding analysis and balancing with/without change in distance between centers; advise for the optimized solution.

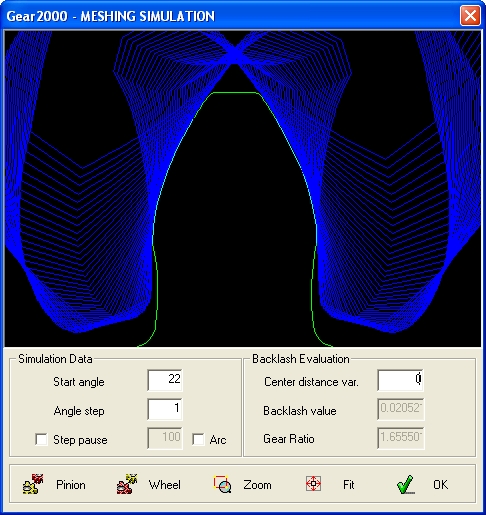

Mesh graphic simulation and clearance check.

Storing and loading design data, modify and redesign capability.

Minimum input of parameters: omitted parameters are recalculated in compliance with standard DIN.

Interactive modification using WIZARD and DIALOG-BOX facilities.

Short elaboration time.

The designer can choose between the proposed and optimized solution.

Functional test of immediate graphic and alphanumeric outputs reduces error.

Recalculation and check of all input-parameters, looking for DIN specification; every inconsistency is displayed, sanction is required to standard dispensation.

Plotting and printing of complete gear data, complying DIN standard.

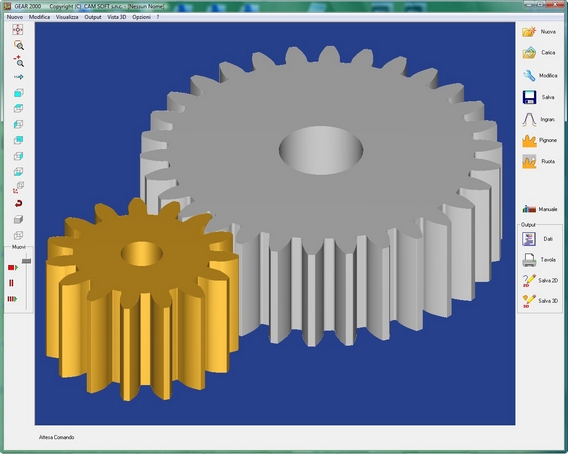

Solid generation for mesh 3D graphic simulation; 3D output in Iges3D,STEP, STL and VRML format.

Tooth profile and whole gear generation, output of CAD file in DXF and Mi format.
