GENEVA WHEELS
It is a mechanism for intermittent motion in which the driving force consists of a crank that
rotates at a constant speed, on the end of which is placed a roller that, by inserting itself into the
grooves of the cross, produces its intermittent advancement.

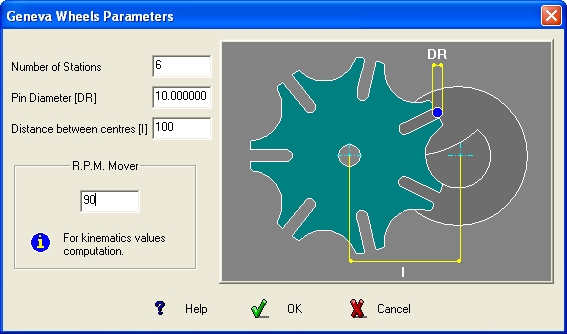

The required Data are :
· Number of Stations
· Pin Diameter[DR]
· Distance between centers [I]
· R.P.M. Mover (revolutions per minute)

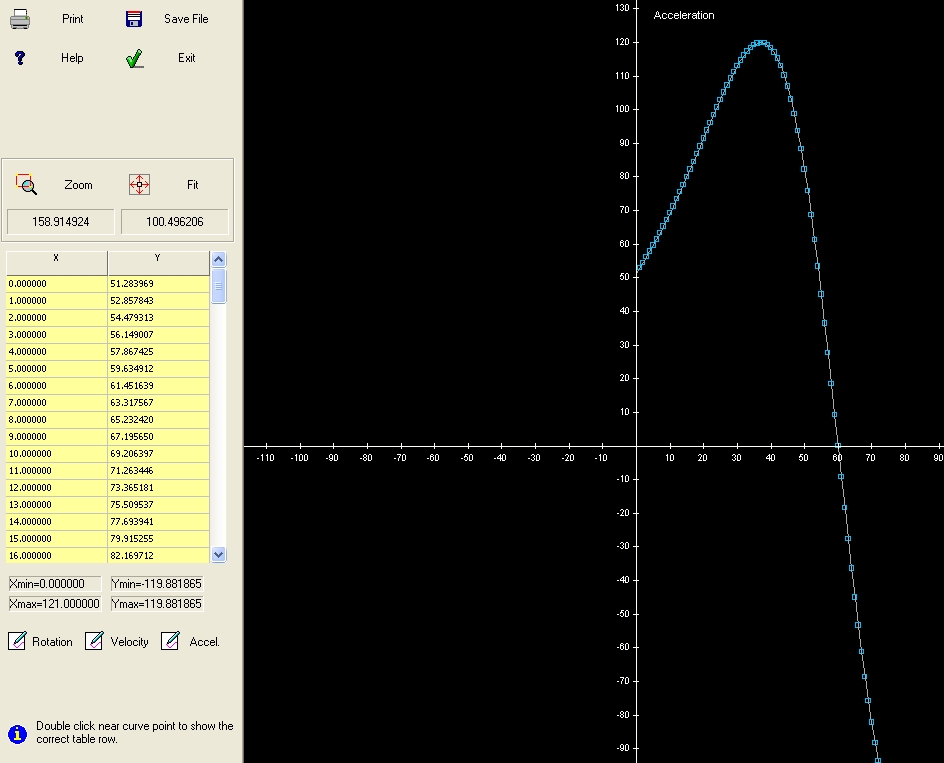

Angular Acceleration Graph of mechanism.

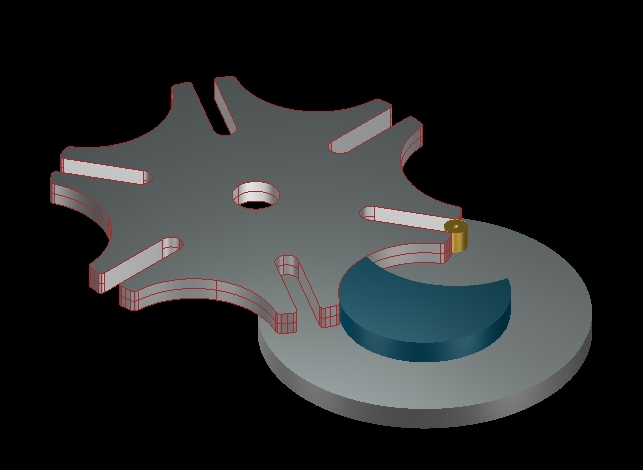

Sample of mechanism with 6 Station.

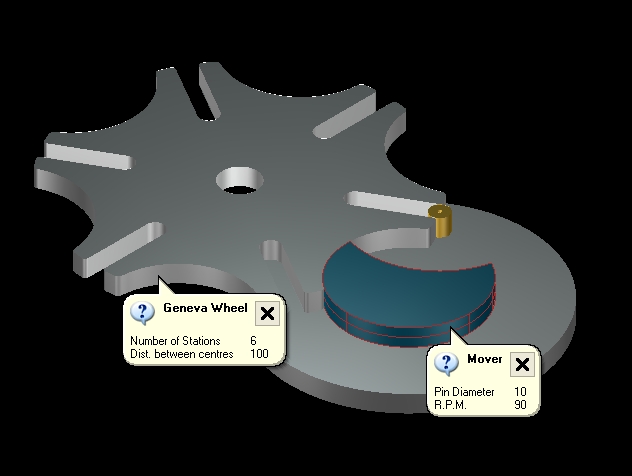

Use the mouse right button to see the baloon of mechanism data .
