CYLINDRICAl-TRANSLATING CAM

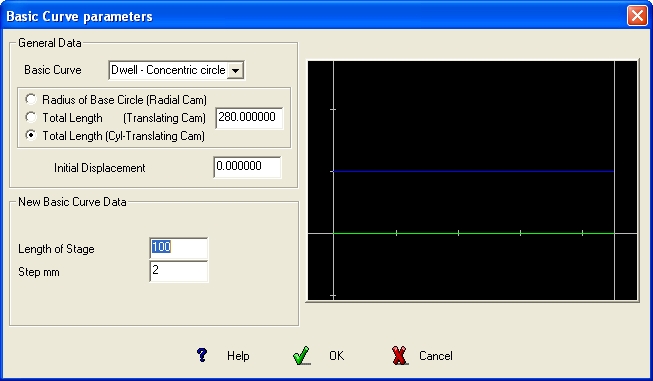

To generate this type of Cam it is necessary to have defined the first curve based on the Total
Length (Cyl-Translating Cam) option.

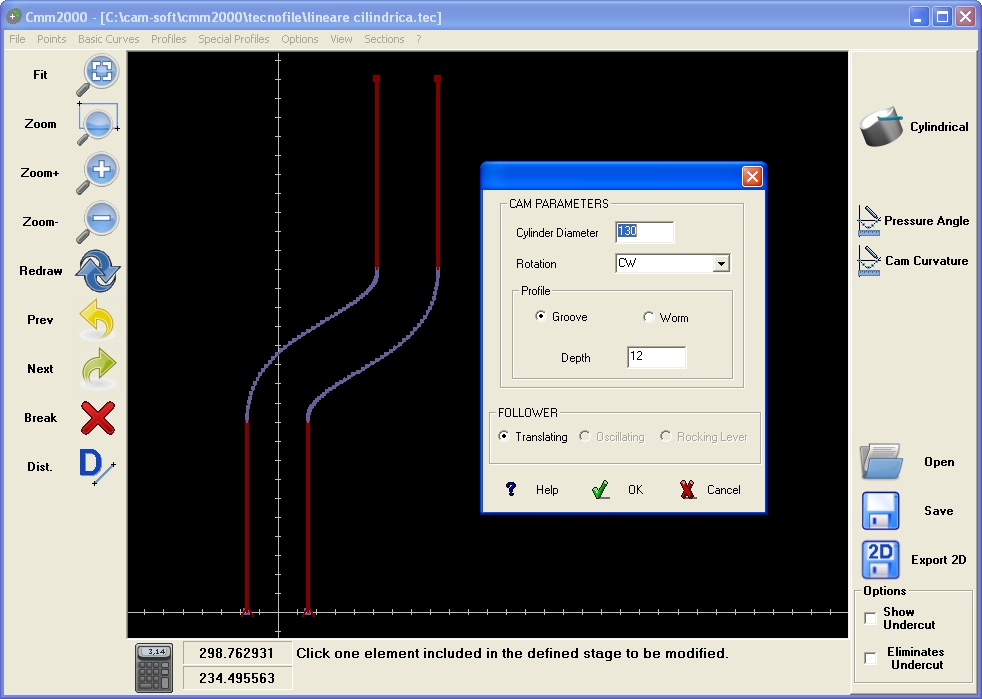

When defining the Curves, the Length of Stage refers to the length [mm] of the track along the
vertical axis of the cylinder; the Total Displacement refers to the rotation [degrees] of the Cam
or, reciprocally, of the Follower when the Cam is moved linearly.

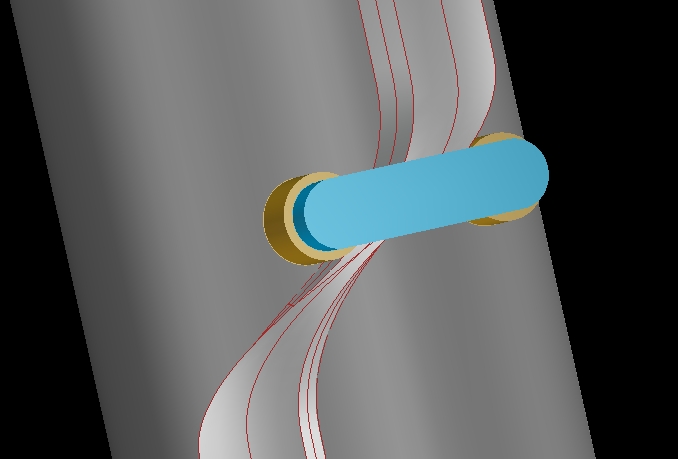

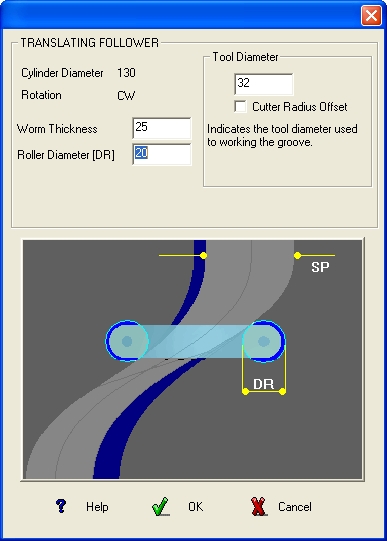

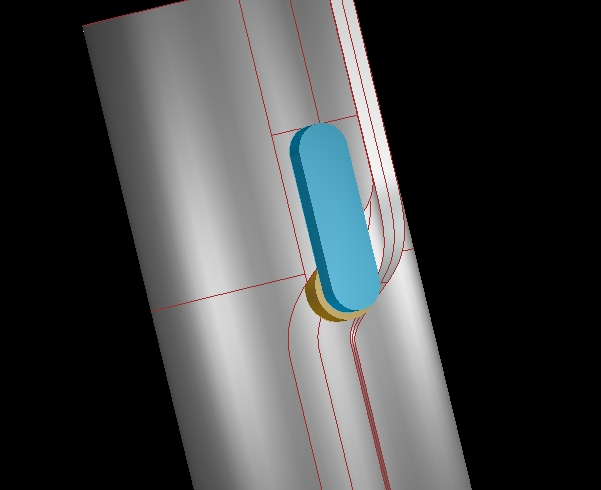

It is possible to define the Track on the cylinder so that it protrudes from the cylinder (Worm) or

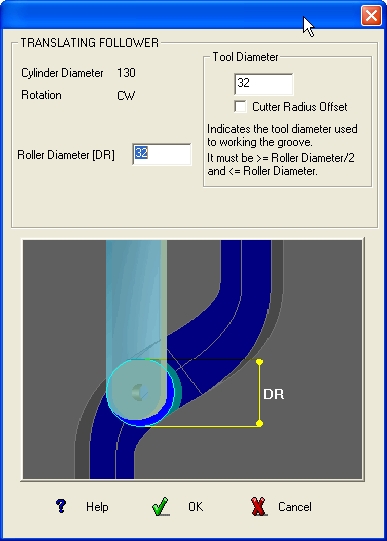

with a Groove within which the Roller slides.
